Description

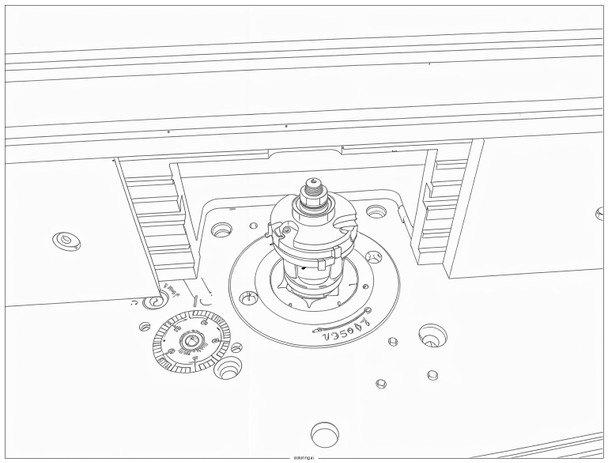

Sommerfeld's Tools Router Table System with built in lift and 2.25 HP router motor with remote analog variable speed control. Change your router bits from above the table with no need to go under the table to adjust motor speed!

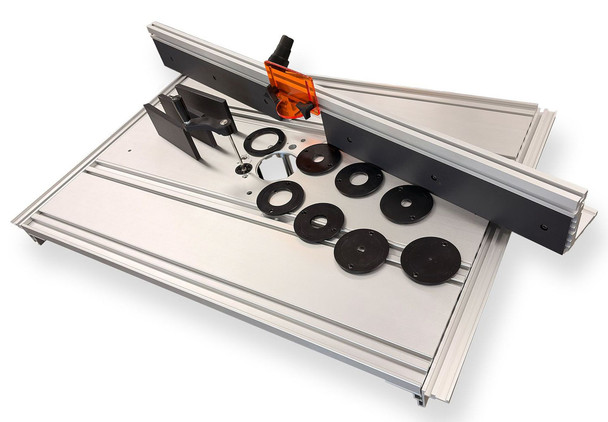

Our extruded aluminum table measures 36" x 27" which gives you plenty of support for your largest workpieces.
The opening (without insert rings) is 3-5/8" diameter which accepts even your largest raised-panel- bits.
Our easy adjusting best in class Fence is a whopping 48" long x 4-3/4" high.
Spring-loaded Pin allows rapid pivot adjustments of fence from one end - or use locking knobs on both fence ends if you prefer when working with cumbersome workpieces.
4-step dust port slides captive over full length of fence in dovetail slots. Slide out of the way to access the bit area for cleanout - accepts 1-1/4", 1-1/2", 2", & 2-1/4" I.D. hose fittings.
Three T-slots for attaching stops, hold-downs or similar devices using 5/16" bolts w/ 1/2" hex heads. Another slot of fence face for mounting HDPE sub-fences.
HDPE sub-fences can be shimmed from behind for outfeed support when making full-height edge cuts.
Zero clearance fence inserts can be customized to match your bits.
This Router Table System Includes:
- (8) twist-lock Insert Rings to improve dust collection and safety with various size router bits.
- insert ring locking wrench
- DVD3 - Router Tables Made Easy. Step by step instructions on how to build a storage cabinet router table base.
- 16-page full-color instruction book for table assembly.

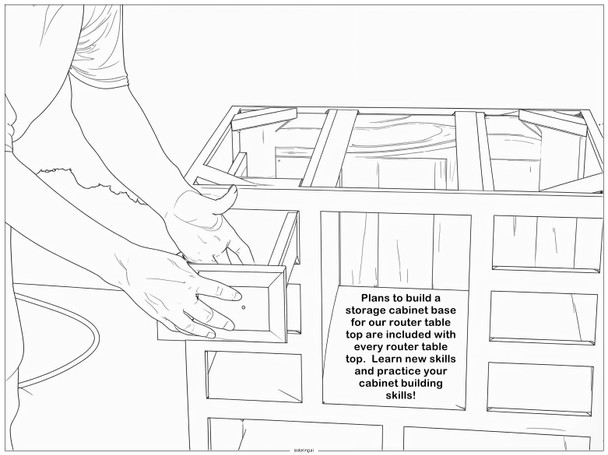

- Plans for building a storage cabinet that fits under the Router table top.

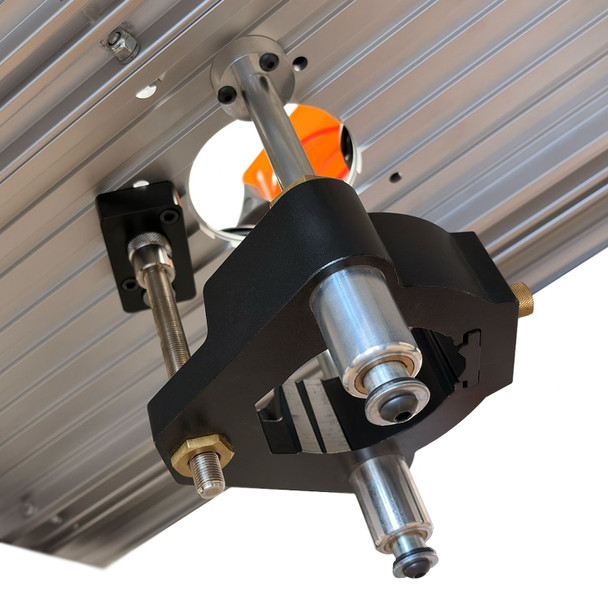

- A built in high precision Router table lift.
- The VMTW 2.25 HP Router motor with remote variable speed control.
- (2) HDPE Sub-fences
- (3) Zero Clearance replaceable fence Inserts for tight dust control and safety around the router bit.
- 4-step Dust Port
- 5-32" Allen Driver
- Transparent finger protection fence Guard
- Assorted mounting hardware
