Description

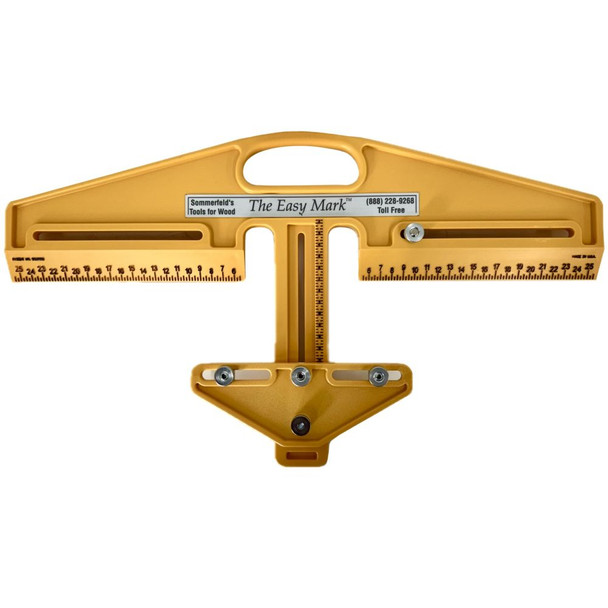

If you're still measuring, marking and drilling large numbers of mounting holes without the aid of a device like this, you're wasting a lot of valuable time.
Here's how it works:
- Reset the raised ledge on the back side of the Easy Mark on the top edge of the drawer front
- Slide the horizontal stop all the way to the right and center the device on the drawer front, using the left and right half-scales as indicators
- Slide the stop to the left until it makes contact with the right side of the drawer front and tighten
- Adjust drill bushings (3" to 4-1/2" on-center) to match hardware mounting holes and tighten
- Loosen the locking knob on the drill bushing block...slide it vertically to your desired postition...and re-tighten the locking knob

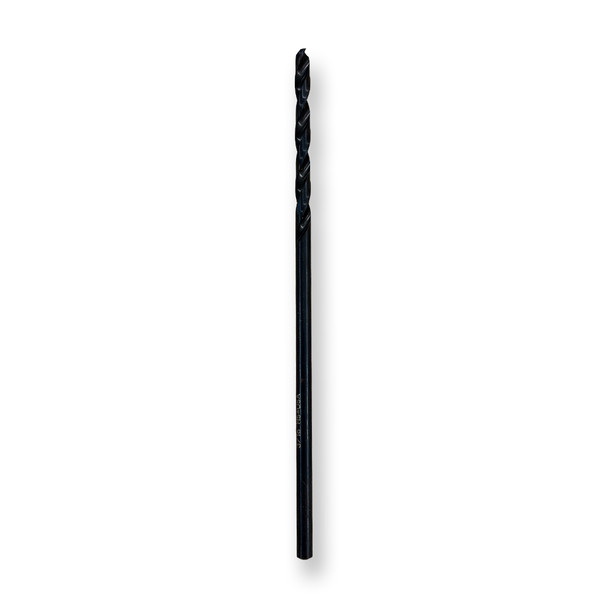

- Use a 3/16" twist drill bit in the applicable hardened bushings to bore mouting holes
- Move the Easy Mark to the next drawer and repeat the process
